Cast Iron V-block

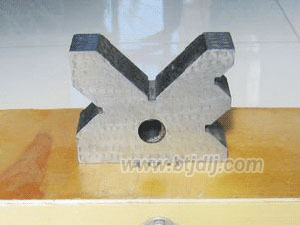

This type of precision V-block adopts the high strength cast iron HT200-300. Apart from the inspection, revising, and scribing of axles or precision shaft parts. It is also suitable for inspecting the verticality and parallelism of workpiece. Moreover, our cast iron vee block can be utilized for the clamping in the mechanical processing.

inquiry form

Remark: this vee block sets are supplied in pairs.

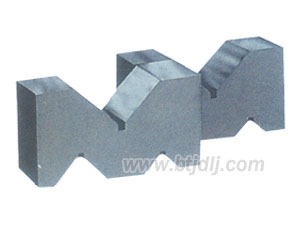

We can provide you with 2 kinds of specifications as below

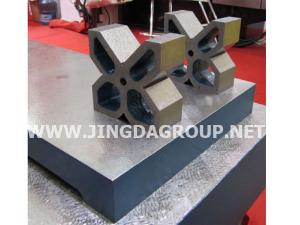

This type of V-block applies the hollow design, which allows for weight reduction. Thus, it is conveniently used for inspection and revising.

Parameters

Size(mm) Flatness of Working Surface Parallelism Between the V Groove and Bottom Surface Parallelism Between the V Groove and Side Face Degree of Symmetry Between V Groove and Two Side Faces Verticality between the V Groove and End Face
Precision Grade(μm)
0 1 2 0 1 2 0 1 2 0 1 2 0 1 2
100×100×80   3 5   15 25   15 25   30 50
150×150×80   4.5 6.5   15 25   15 25   30 50
200×200×90   5 8   20 30   20 30   40 60
300×300×120   10 12   30 40

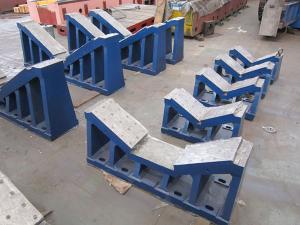

Additionally, we can custom-tailor the following two types of V-blocks according to your drawing.

Related Names
Vee Blocks for Sale | Inspection Components | Precision Calibration Parts
