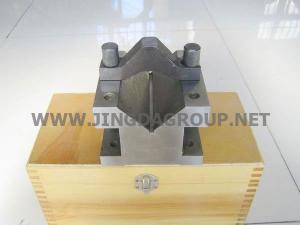

The steel V-block made from qualified tool steel is applicable for the inspection in the cylindrical products processing. It can correct the verticality, concentricity, and the like. This metal V block features high precision and can be conveniently used. In addition, it has a plate used to fix workpiece, thus making the measurement more accurate. Our tool steel vee block is really convenient to use.
Parameters| Size(mm) | Flatness of Working Surface | Parallelism between V Groove and Bottom Surface | Parallelism between the V groove and Side Face | Degree of Symmetry Between V Groove and Two Sides | Verticality between the V Groove and End Face | ||||||||||
| Precision Grade(μm) | |||||||||||||||
| 0 | 1 | 2 | 0 | 1 | 2 | 0 | 1 | 2 | 0 | 1 | 2 | 0 | 1 | 2 | |
| 35×35×30 | 1 | 2 | 3 | 2.5 | 5 | 10 | 2.5 | 5 | 10 | 5 | 10 | 20 | 5 | 5 | 10 |
| 60×60×50 | 1 | 2 | 3 | 2.5 | 5 | 10 | 2.5 | 5 | 10 | 5 | 10 | 20 | 5 | 5 | 10 |
| 105×105×80 | 1.5 | 3 | 5 | 4 | 8 | 15 | 4 | 8 | 15 | 8 | 16 | 30 | 8 | 8 | 15 |
